GHL Pharamaceutical High Shear Wet Type Mixing Granulator
Features
1. Cone cylinder cylinder structure, with Z-type agitator, to ensure good mixing and granulation effect, get good wet particles;
2. The design and selection of modular working platform, flexible choice of online wet granulator, has a good adaptability to the process and working conditions;
3. Design and provide pressure injection adhesive injection method, manual adhesive injection method or other methods of adhesive injection unit, with rich product adaptability;
4. Provide the function of determining the end point of granulation, with good process reproducibility;
5. Designed to provide self-vacuum raw materials feeding mode, reduce labor intensity, eliminate dust pollution, avoid cross pollution, well meet the current GMP requirements of clean production;
6. Mixing paddle and pelletizer adopt compound mechanical seal and gas seal to prevent material leakage and residue, avoid cross contamination, and well meet the current GMP requirements for clean production;
7. Mixing paddle and granulating knife use frequency conversion control, speed can be set, customers can flexibly adjust to meet the requirements of a variety of production processes;
Paramaters
| Items |
Unit |
Model/specification |
| SMG3/6/10 |
SMG25 |
SMG30 |
| Volume |
L |
3-10 |
25 |
30 |
| Working volume |
L |
2-9 |
8-20 |
9-24 |
| Feeding quantity |
Kg/batch |
1-3 |
4-10 |
4.5-12 |
| Mixing speed |
Rpm |
150-1000 |
70-725 |
70-725 |
| Mixing motor power |
Kw |
1.5 |
2.2 |
2.2 |
| Chopper speed |
Rpm |
280-2700 |
280-2800 |
280-2800 |
| Chopper motor power |
Kw |
0.37 |
1.1 |
1.1 |
| Overall dimension |
mm |
1350×760×1280 |
1940×680×1470 |
1350×760×1280 |
| Discharge port height |
mm |
660 |
700 |
700 |
| Net weight |
Kg |
360 |
450 |
500 |
Options
• Lifting machine feeding
• Vacuum feeding
• Material pot jacket design, used for heating and cooling
• Equipped with wet type granule sizing machine or oscillating granulator.
• Bond liquid supply metering system
• Data online printing system
• WIP cleaning system
• Explosion-proof function
WORK PRINCIPLE
Material through the vacuum (such as the selection of the feeding method), or other feeding into the silo, under the action of the stirring paddle is mechanical fluidized, forming a good movement track in the silo, mixing evenly, injection of adhesive, open granulating knife; The material is bonded by the adhesive to form the bridge to form the master batch. Under the action of mechanical energy conversion, it gradually grows up to form the wet particles that meet the requirements.
Product Tags:
|
|

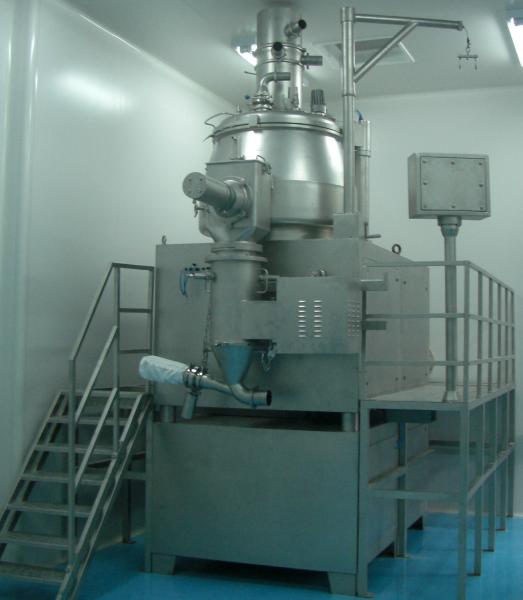

HLSG-200 Vacuum Feeding Wet Type Mixing Granulator Images
|
