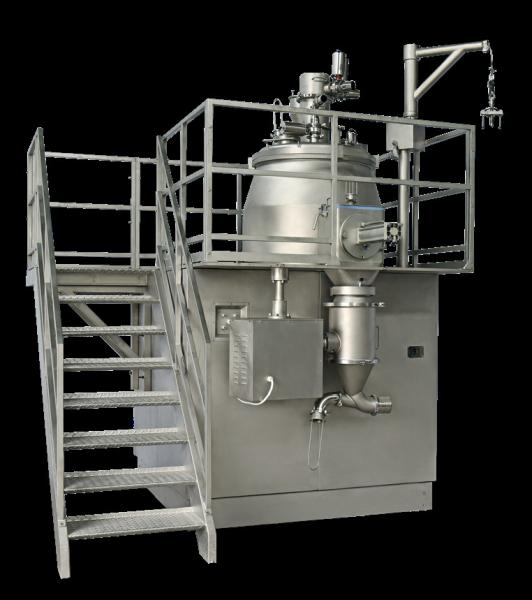

Pharmaceutical Food Chemical Industry Rapid Mixer Granulator Machine
Advantage
This machine is our company's extensive absorption, digestion of foreign advanced technology, combined with the national conditions of the successful research and development of new models. Made of high quality austenitic stainless steel, all corners arc transition, no dead Angle, with casters, easy to move. The machine adopts PLC control, the experiment process can be automatically completed according to the set process parameters, print all process parameters, the original record is true and reliable. Completely in line with GMP requirements for drug production.
Features
1. Cone cylinder cylinder structure, with Z-type agitator, to ensure good mixing and granulation effect, get good wet particles;
2. The design and selection of modular working platform, flexible choice of online wet granulator, has a good adaptability to the process and working conditions;
3. Design and provide pressure injection adhesive injection method, manual adhesive injection method or other methods of adhesive injection unit, with rich product adaptability;
4. Provide the function of determining the end point of granulation, with good process reproducibility;
5. Designed to provide self-vacuum raw materials feeding mode, reduce labor intensity, eliminate dust pollution, avoid cross pollution, well meet the current GMP requirements of clean production;
6. Mixing paddle and pelletizer adopt compound mechanical seal and gas seal to prevent material leakage and residue, avoid cross contamination, and well meet the current GMP requirements for clean production;
7. Mixing paddle and granulating knife use frequency conversion control, speed can be set, customers can flexibly adjust to meet the requirements of a variety of production processes;
Paramaters
| Items |
Unit |
Model/specification |
| SMG3/6/10 |
SMG25 |
SMG30 |
| Volume |
L |
3-10 |
25 |
30 |
| Working volume |
L |
2-9 |
8-20 |
9-24 |
| Feeding quantity |
Kg/batch |
1-3 |
4-10 |
4.5-12 |
| Mixing speed |
Rpm |
150-1000 |
70-725 |
70-725 |
| Mixing motor power |
Kw |
1.5 |
2.2 |
2.2 |
| Chopper speed |
Rpm |
280-2700 |
280-2800 |
280-2800 |
| Chopper motor power |
Kw |
0.37 |
1.1 |
1.1 |
| Overall dimension |
mm |
1350×760×1280 |
1940×680×1470 |
1350×760×1280 |
| Discharge port height |
mm |
660 |
700 |
700 |
| Net weight |
Kg |
360 |
450 |
500 |
Options
• Lifting machine feeding
• Vacuum feeding
• Material pot jacket design, used for heating and cooling
• Equipped with wet type granule sizing machine or oscillating granulator.
• Bond liquid supply metering system
• Data online printing system
• WIP cleaning system
• Explosion-proof function
